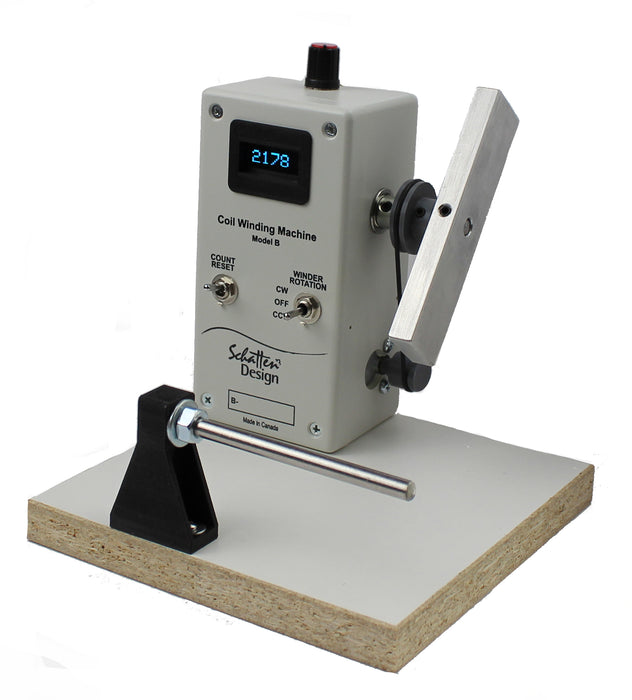

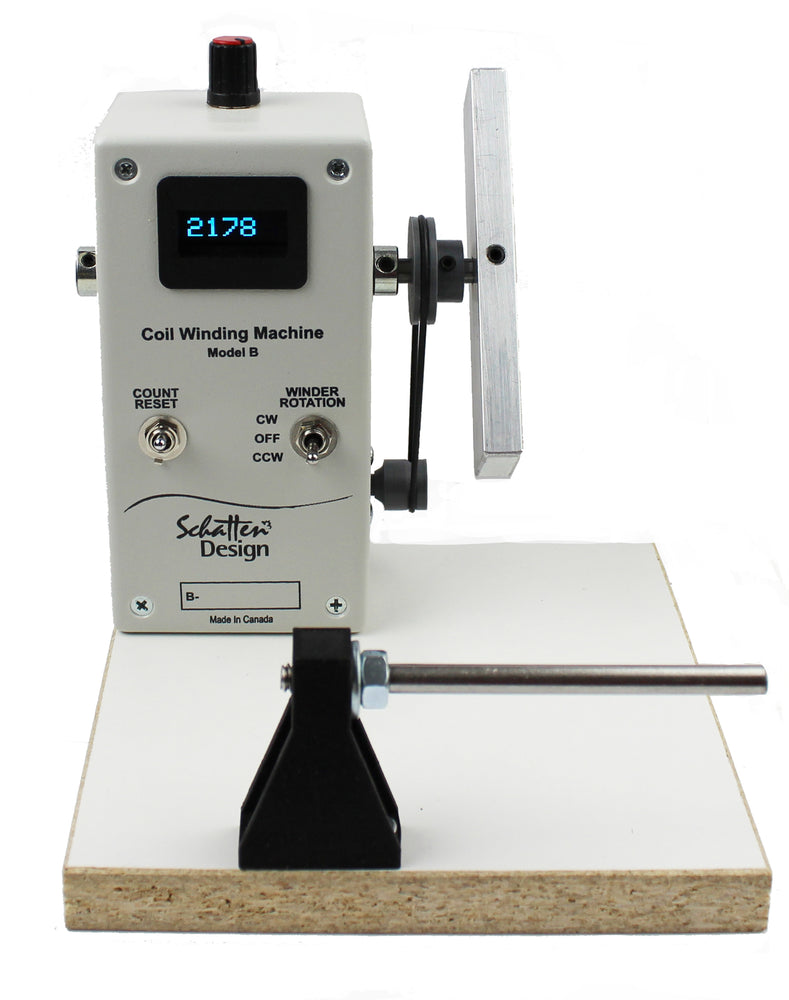

Coil Winding Machine - Model BK3 Kit - Worldwide Model - 90 to 260 volt
Model B winding machine kits are designed to wind coil wire from 38 gauge to 44 gauge or finer. It is a small profile machine fully capable of winding thousands of pickups over its service life.
Everything that you need to assemble a fully working Model B winding machine is provided in this pre-drilled easy to assemble kit. Assembly consists mostly of some soldering work and installation of parts on the machine. Average assembly time is between forty five minutes and one hour. The only things that we don't supply are the simple hand tools and the solder and soldering iron.
Technical
Features: Speed control, resettable electronic counter, rotation direction via selector switch, cross Feed limit assembly, outside drive belt for easy replacement, heavy duty ABS enclosure.
Specifications:
- Maximum speed (no load): 1500 rpm
- Average winding speed: up to 1000 rpm
- Motor: 9v dc brushed motor, fractional hp
- Power supply furnished with machine: 100 to 240 volt input, 9 volt 500 milliamp, tip positive output.
- Power supply comes with adapter plugs for AU, EU, UK, US.
